1784-PCMK Data Highway Plus PC Card

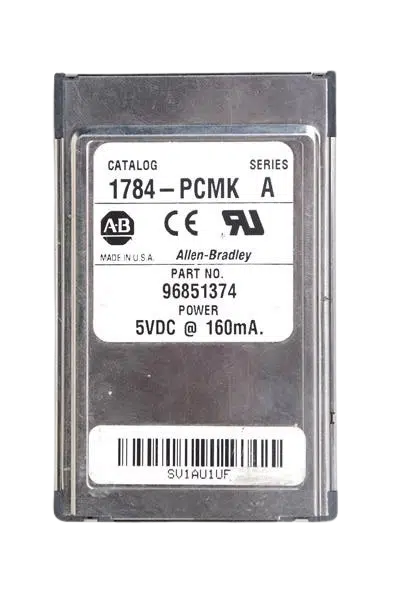

The 1784-PCMK PCMK/B card is a PCMCIA Type II form-factor card that gives a notebook computer a way to communicate to other devices on both DH+, DH485, and remote I/O communication networks.  This card has now become obsolete due to computer technology changes and AB recommends the 1784-U2DHP.

1784-PCMK

What is PCMCIA?
The Personal Computer Memory Card International Association (PCMCIA) is an organization that defines standards for connecting peripherals to laptop or notebook computers. The standard ISA, EISA, PCI, and VLB buses are too large for laptop computers; the PCMCIA PC Card is an accepted notebook standard. Rockwell Automation is a registered member of PCMCIA and developed the PCMK Communication Card (cat. no. 1784-PCMK/B)

What is a PC Card? Since personal computers have become smaller, a need for smaller storage media developed. The PC card is a small form-factor adapter that adds memory, storage, and I/O capabilities to these smaller computers. All PC cards measure the same length and width, 54.0 mm x 85.6 mm (2.13 in. x 3.37 in.), but differ in thickness at the center. The thickness at the connector end and along the rails is the same for all types of PC cards.

All three types of PC cards use the same 68-pin connector. The pins are in two parallel rows of 34 pins. When inserted into the PCMCIA slot on your computer, the connector mates with a single molded socket

What does the 1784-PCMK interface to:

PLC-5:  is a 1771 processor module that provides a trusted PLC approach for industrial control. PLC-5 processors are high-speed, single-slot processors used for control and information processing. They are designed for larger sequential and regulatory control applications with specialized I/O requirements and/or the need to coordinate with other processors and devices.

PLC-5 processors are available in a range of I/O capacity and memory size, and can be connected in a variety of networks for distributed processing and distributed I/O. The 1771 I/O products offer a full range of digital and analog I/O (including intelligent I/O) in a rugged modular assembly.

Automation Network DH+ Converter Alternatives

The ANC-100e DH+ converter provide communications between newer Ethernet Technologies and DH+ legacy PLC-5s and SLC/504s

ANC-100e: Ethernet/IP to DH+ Converter

The ANC-100e is a pocket-sized, high performance, Industrial Rated Ethernet DH+ Converter.  Features include: Ease of Configuration via Web Interface and DH+ Auto Polarity Detection and DH+ Auto Baud Rate Detection. $1,295 USD List.

theAutomationblog 20 min video review https://theautomationblog.com/data-highway-plus-to-ethernet/ for more detailed info.

The ANC-120e is a competitive alternative to AB’s 1784-U2DHP PLC Programming Cable

ANC-120e: USB to DH+ RSlinx PLC

Is an economical and high performance USB-to-Allen-Bradley Data Highway Plus converter interfacing major HMI, SCADA, PLC Programming packages to Devices on DH+. Its features significantly outperform AB’s 1784-U2DHP PLC Programming Cable operating at 12 Mg USB speed with the Controllogix Ethernet/IP Driver.
The ANC-120e works with all SCADA, MMI, PLC programming packages installed on your PC with USB direct access to the DH+ network and stations. These packages include RSLINX/LOGIX Classic & Enterprise with RSLOGIX 5/500, Wonderware DAServer & TCP/IO Server, Citect, and Kepware using Controllogix Ethernet/IP Drivers.
$1,295 USD List.

theautomationblog 20 min video review  http://theautomationblog.com/usb-to-data-highway-plus-using-the-anc-120e-a-lower-cost-alternative-to-the-1784-u2dhp/ for more detailed info.

ANC-100e Ethernet IP to AB's DH+ Converter

The Automation Networks ANC-100e communicates with all SCADA, HMI, PLC programming with direct Ethernet/IP access to the DH+ network and stations.

ANC-100e has similar replacement features as the Controllogix 1756-DHRIO / 1756-ENBT, and AB 1784 Interface Cards: 1784-U2DHP, 1784-KTx, 1784-PKTx, 1784-PCMK and Prosoft AN-X2-DHRIO Converters.

$1,295 USD List. Jan. 1, 2024

Overnight Shipping Available

ANC-120e USB to AB's DH+

The ANC-120e is an economical and high performance USB-to-Allen-Bradley Data Highway Plus converter interfacing major HMI, SCADA, PLC Programming packages to Devices on DH+. Its features significantly outperform AB’s 1784-U2DHP PLC Programming Cable operating at 12 Mg USB speed with the Controllogix Ethernet/IP Driver.

The ANC-120e works with all SCADA, MMI, PLC programming packages installed on your PC with USB direct access to the DH+ network and stations. These packages include RSLINX/LOGIX Classic & Enterprise with RSLOGIX 5/500, Wonderware DAServer & TCP/IO Server, Citect, and Kepware using Controllogix Ethernet/IP Drivers.

$1,295 USD List. Jan 1, 2024

Overnight Shipping Available
